功能特点:
√MARK点自动校正功能
√可矩阵和简化编程
√具有切割路径优化功能，如路径修改、整体偏移等
√双工作台减少操作人员等待时间
√支持左右托盘同时进行不同的切割工作。
√左右托盘可以组合在一起进行大面积的切割
√刀具寿命监测
√预留MES端口和机器人端口
√高稳定性和准确性
√自我诊断功能
选配功能:
√支持双主轴应用
√断刀检测功能
√自动换刀系统
√可选配条形码扫描功能，支持自动更改程序
√MES接口
√集尘箱HEPA功能
√可根据贵司实际需求定制尺寸
Functional Specifications 参数
项目 参数

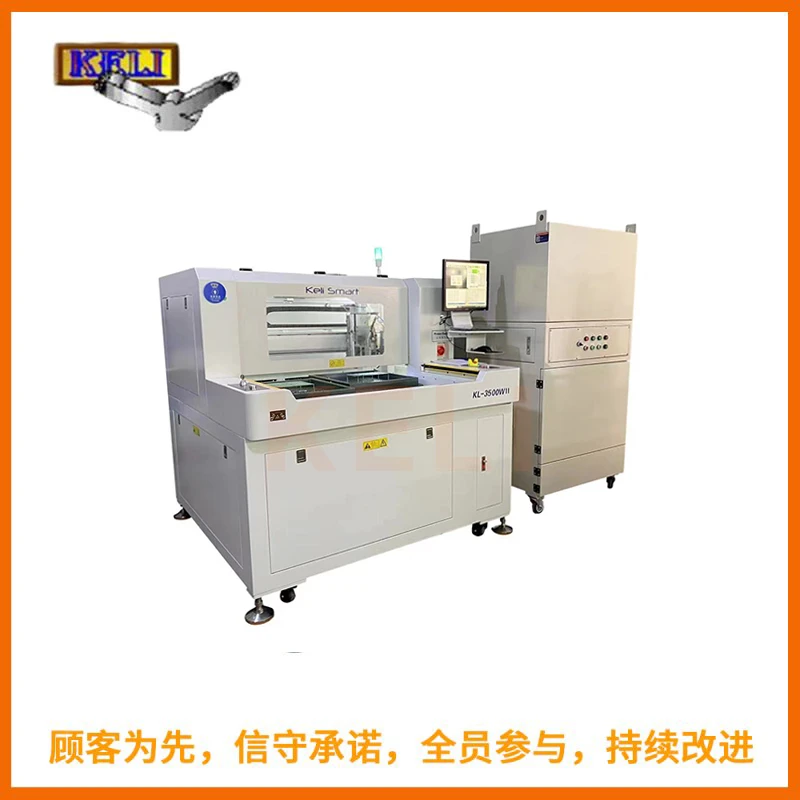

设备型号Equipment Mode KL-3500 KL-3500DW KL-3500II KL-3500WII
设备类型Equipment Type 离线式Off-line roter 离线式 Off-line roter 离线式 Off-line roter 离线式Off-line roter
桌面类型Table Type and machine mode 双工作台 Dual table 双工作台Dual table 双工作台 Dual table 双工作台 Dual table
机器尺寸Machine Dimension 1160 x 1260x 1550mm 1790*1230*1780mm 1240*1150*1531mm 1590*1530*1600mm
较大PCB尺寸Max Panel Size 300(L)*330(W) mm 420(L)*480(W) mm 360(L)*310(W) mm 450(L)*500(W) mm
电源Power supply AC 220 V single phase (internal AC 230V) 1.5 kw (50~60 Hz)
气压Air Pressure Supply 4.5 kg/cm2 (4~6 kg/cm7)
操作系统Operating System Microsoft Window 7
照相机Camera 1.3 mega pixels CCD
主轴Spindle 国产定制主轴,可选进口主轴 Chinese Customized spindle, can choose KAVO or NSK spindle
主轴转速Spindle Speed Range 5000-60,000 RPM
马达Motor 松下伺服马达PANASONIC AC servo motor and servo driver
模组Module 高精密研磨滚珠丝杆和直线导轨High precision module applicaition
铣刀直径/铣刀寿命监演测tertiarbianrtete te f: otroo 0.8~3.0 mm/分段式控制Ctterattrition system(auto knife stage setting)
定位/重复精度Positioning Accuracy & Repeatability +0.01mm
切割精度Cutting Accuracy +0.05mm
静电消除器Static elimination 静电离子风嘴Lonic generate system
程序制作Programming 直接坐标输入或CCD导入Direct co-ordinate input with CCD/CAD import
安全装置Safety Device 安全光幕和安全门Light curtain sensor and door open detector
切割线种类Cutting Pattern 直线、圆弧、曲线和斜线Linear, circular, curve and oblique
路径自动校正功能Auto Cutting Path Correction MARK点自动校正 Fiducial mark calibrate
条码扫描功能Barcode scanning function 条码扫描功能支持自动调取程序Barcode scanning function to support automatic change program
注：以上参数为标准配置，若有特殊需要的可根据客户要求改进定制技术参数若有改变，恕不另行通知，较终解释权归广东东莞市科立自动化设备有限公司所有。
√ 您是否以前已经购买过分板机，但发现机器不好用?
Have you ever bought a Router machine, but found that the machine is not easy to use?
√ 您是否购买分板机超过两三年，但为您销售分板机的厂家已经转行?
Do you buy a Router machine for more than two or three years, but the PCB Router machine manufacturer has already switched?
√ 面对熟手难留的现实情况，您是否在计划购买一台自动化程序更高的分板机?
In the face of the manpower reality, whether you plan to buy a higher automation program Router Machine?
无论您是哪种情况，既然您来到了科立，就让科立解决您的后顾之忧! No matter what kind of
situation you have now, since you have the chance to know our KELI, let our KELI help you.
您选择科立分板机的五大理由
5 words to know about KELI Router
早 Earlier
√国内较早 The earlier factory in our China
√历经四次更新换代 Have 4 times upgrade
√分板机行业近十年历炼 10years experience
√可以和进口设备媲美 Can compete with imported equipment
双工作台减少员工等待时间
Twin table to shorten the waiting time
专 Focus
√多板机多项技术More patent for Router
√获得国际CE认证Has CE certificate
√分板机行业The benchmark and leading the direction of the PCB Router industry.
√切割精度高，切割表面光滑无毛刺，满足客户对产品工艺要求较高的需 求;High cutting accuracy, cutting surface smooth without burr, to meet customer high requirements for product;
√可以切割直线、圆弧、曲线和斜线;Can cut the straight line, circular, curve and ablique line.
√分段下刀，低耗生产。刀具寿命管理监测，铣刀切割一定距离后会根据设定自上升/下降至另一 段，以延长铣刀寿命，降低耗材成本。Cutter attrition system, low consumption production. Tool life management monitoring, auto knife stage setting, to extend the life of the cutter and reduce the cost of consumables.
√自诊断功能。错误信息自诊断系统，对设备运行过程中的故障可自行诊断，方便查找故障，及 时恢复生产。Self diagnostic function. Error information can be self diagnosed during operation, convenient to find fault, and recovery of production timely .
高像素CCD放大镜头，辅助程序示教及编辑功能，精度更高更精确，分板精度高 Equipped with high pixel CCD enlarging editing functions, higher accuracy, high precision of PCB cutting.
稳 Stable
√主要部件进口配置 Mainly assembly unit is import.
√高精度、高效率、高稳定性 Higher accuracy, speed and reliability.
√利用两个活动平台交替加工物件，减少等待时间，提高产能 Use twins moveable tables to reduce the waiting time, and increase production capacity.
√ 带 有 I / O 通 讯 软 件 ， 方 便 维 修 和 排 除 故 障 E q u i p p e d w i t h I / O communication software, convenient to maintenance and troubleshooting.
√切割应力小，约为手掰式的1%，冲压式的0.1%，减小对PCBA板隐性的 伤害 Cutting inside force is small, about 1% of hand breaking , 0.1% of punching, reduce the hidden damage to the PCBA.
MES port and robot port are reserved for easy access to customer MES system and docking with robot.预留MES端口和机器人端口，方便访问 客户MES系统和对接使用机器人。
新 Latest：
√致力于研发更加节省人力，自动化程度高，通用性更好的设备Focus on research and development more save manpower, higher automatic, more universal equipment.
√行业内为数不多的有在线曲线分板机成熟案例的企业 One of the few enterprises can work on online Router.
快 Fastest：
√切割速度快。专为高质量设计，高速运行平台配合高速运转的主轴 ，为您提供优先于业内的切割速度，解决了多连板快速分板的难题 。Cutting speed is fast. It is designed for high quality design, high-speed running platform and running spindle, to provide cutting speed ahead of the industry, and solve the problem of quick splitting of multi connected boards.
√简单操作问题电话解决 Simple operation problems solve by phone,
√其他问题24小时上门处理 24 working hours to go the site to solve the issue.
√一年0收费保修，终身维护，帮助客户第一时间进行故障排除，免除您的后顾之忧 One year parts free warranty, life-long maintenance.
Support for double spindle design
可支持双主轴应用
科立为您准备了以下几款曲线分板机，您可以根据您的需要进行选择：
Our KELI prepare the following Router machines for you, you can choose according to your needs:
KL-3500S 双工作台曲线分板机
KL-3500DW 双工作台大台面分板机
KL-3530 单工作台分板机
KL-3530S 单工作台大台面分板机
KL-3500Wll 单工作台大台面分板机
