FCT功能测试治具 / FUNCTIONAL FIXTURE
可根据客户要求和产品使用特性量身定做各种手动快速夹结构，手动压床结构，气动结构等功能测试治具;Can custom develop the variety functional test fixtures according to customer requirements and product characteristics, such as manual quick clamp structure, manual press structure, pneumatic structure etc;
行程可任意选择，测试稳定;Travel can be arbitrary sellected, the test is stable;
使用方便，经久耐用;Easy to use, portable and endurable;
可以使用单片机、PLC、IC等定制开发功能测试夹具;Can use the microcontroller, PLC, IC to custom development;
可根据需要，配置各种指示灯、开关等;Configure all kinds of lights, switches etc according to the requirement;
所有配件均可置于测试治具内，外观整洁;All parts can be placed into the test fixture, neat appearance;
治具底座可根据需要掀开，方便安装、维护;Fixture base can be convenient installation and maintenance;
拥有高精度钻孔机，可使用探针制作微间距连接器(可到0.3mm)测试夹具，擅长制作FPC、主板类精密测试夹具;Has high precision milling machine, can use probe to make fixture with micro pitch connector (0.3mm), be expert in good precision test fixture for FPC, motherboard production;
采用进口原产INGUN、QA、BT、ECT、电针等探针，框架可采用进口防静电红、黑色电木、压克力、铝板等材料。Can use the origin of imports probe, such as INGUN, QA, BT, ECT, electro probe etc, and the frame material includes imported anti-electrostatic red, black bakelite and acrylic aluminum etc.

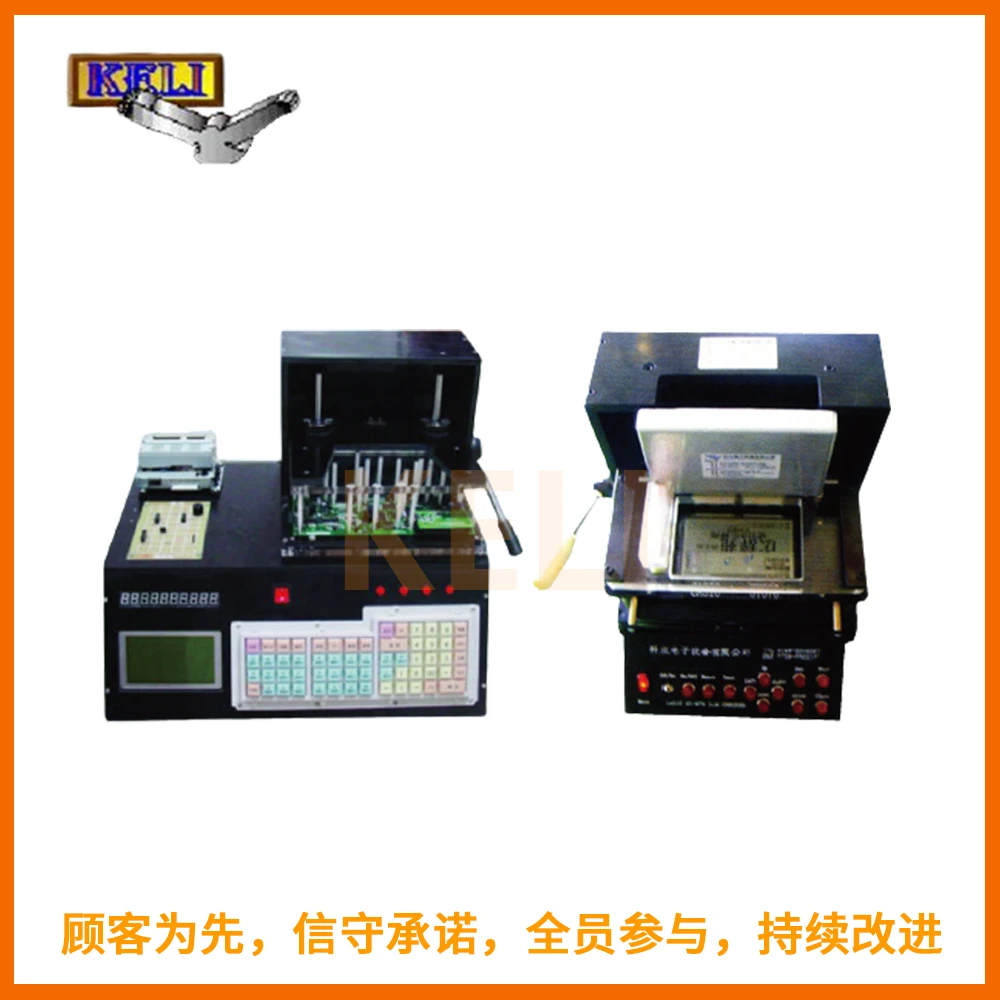

手动压床结构测试治具 Manual Press FCT Test Fixture:
采用凸轮配合连杆传动，凸轮、连杆等传动材料均为进口，确保使用的灵活性;
Use cam connecting with rod to drive, and use imported cam, connecting rod and other transmission materials to ensure the flexibility;
采用待测LCD模块及软PCB板静止，针盘上下运动方式，确保待测LCD模块TAB及软PCB板不受损;
The detected-to-be board of LCD module and FPC is static, the needle plate move upper and lower, to ensure these detected parts have no damaged;
LCD模块及软PCB板受力均匀; LCD module and FPC board are forced evenly;
使用范围: 适用于间距小、使用探针小(0.5mm)弹力较小或探针数量较多的待测LCD模块、软PCB板、电脑板卡等线路板。
Scope of application: Suitable for LCD module, FPC, computer board with narrow gap, small probe(0.5mm), lower elastic or more probe etc.
