FCT功能测试治具 / FUNCTIONAL FIXTURE
可根据客户要求和产品使用特性量身定做各种手动快速夹结构，手动压床结构，气动结构等功能测试治具;Can custom develop the variety functional test fixtures according to customer requirements and product characteristics, such as manual quick clamp structure, manual press structure, pneumatic structure etc;
行程可任意选择，测试稳定;Travel can be arbitrary sellected, the test is stable;
使用方便，经久耐用;Easy to use, portable and endurable;
可以使用单片机、PLC、IC等定制开发功能测试夹具;Can use the microcontroller, PLC, IC to custom development;
可根据需要，配置各种指示灯、开关等;Configure all kinds of lights, switches etc according to the requirement;
所有配件均可置于测试治具内，外观整洁;All parts can be placed into the test fixture, neat appearance;
治具底座可根据需要掀开，方便安装、维护;Fixture base can be convenient installation and maintenance;
拥有高精度钻孔机，可使用探针制作微间距连接器(可到0.3mm)测试夹具，擅长制作FPC、主板类精密测试夹具;Has high precision milling machine, can use probe to make fixture with micro pitch connector (0.3mm), be expert in good precision test fixture for FPC, motherboard production;
采用进口原产INGUN、QA、BT、ECT、电针等探针，框架可采用进口防静电红、黑色电木、压克力、铝板等材料。Can use the origin of imports probe, such as INGUN, QA, BT, ECT, electro probe etc, and the frame material includes imported anti-electrostatic red, black bakelite and acrylic aluminum etc.

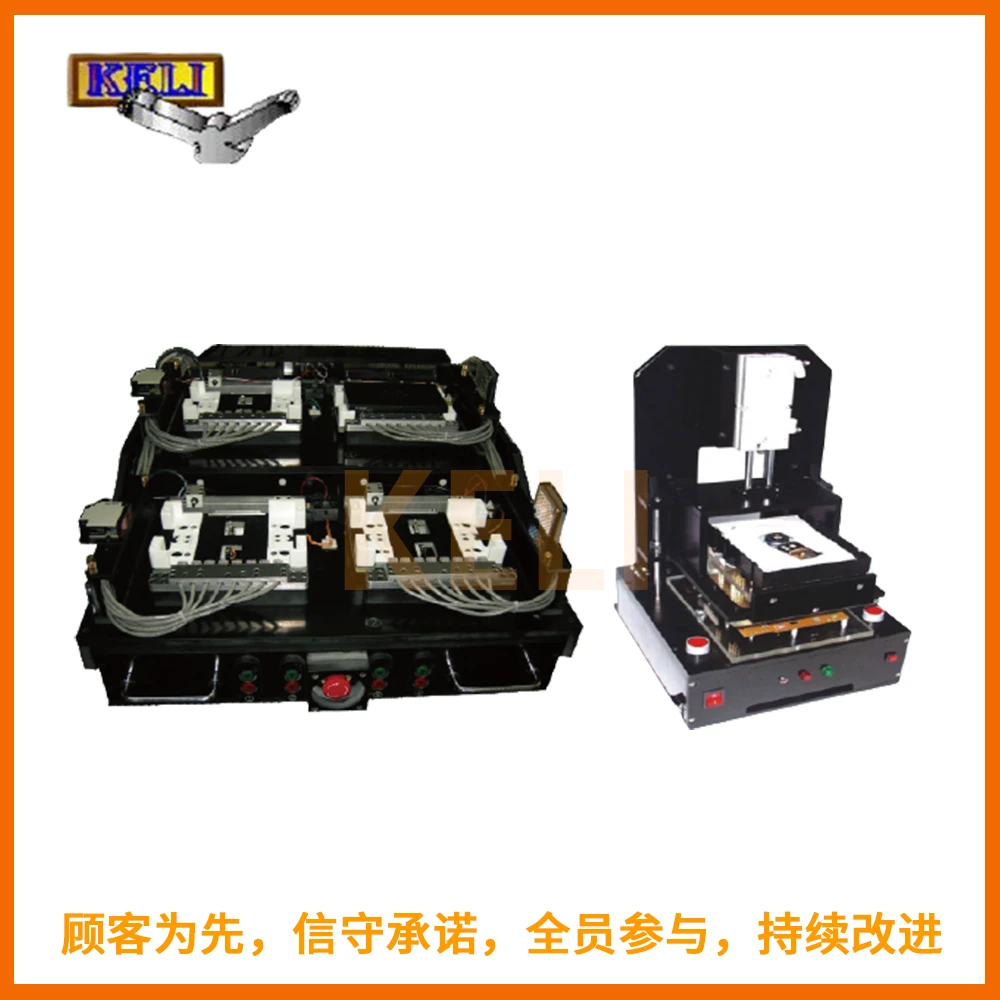

气动FCT功能测试治具 Pneumatic FCT Test Fixture:
用气缸、电磁阀、电机(马达)控制，省时省力、更加适用现代工程生产;
Control by cylinder, solenoid valve and motor, save time and effort, and suitable for modern engineering production;
轴承导向定位, 精度高, 可做单、双面测试;
Bearing guide positioning, higher accuracy, can be single-side or double-side test;
采用THK精密线轨，承载力大，运动灵活且精度高;
Use of THK precision line rail, higher bearing capacity, flexible movement and higher accuracy.
全部采用日本SMC的汽缸与电磁阀;All cylinder and solenoid valve from SMC in Japan;
可自动完成产品前进、下压、测试、上升、回退功能，方便、快捷、高效;
Can automatically forwarding, going down, testing, going up, back, with convenience, fast and efficiency;
双手操作，且人手不接触下压气缸，保证操作安全;
Hands operation, and the hands are not exposed to the cylinder, to ensure the safety.
汽缸压力大，保证每根针接触良好，且行程大，可上下加针;
Higher cylinder pressure, ensure that each needle in good contact, and the stroke is enough to add the needle up or down;
适用范围：适用于元件较密集和SMT元件较多之基板测试， 以及速度和精度要求高的自动或半自动测试场所。
Scope of application: Suitable for the components parts with high density, high speed and high accuracy requirements.
